Description

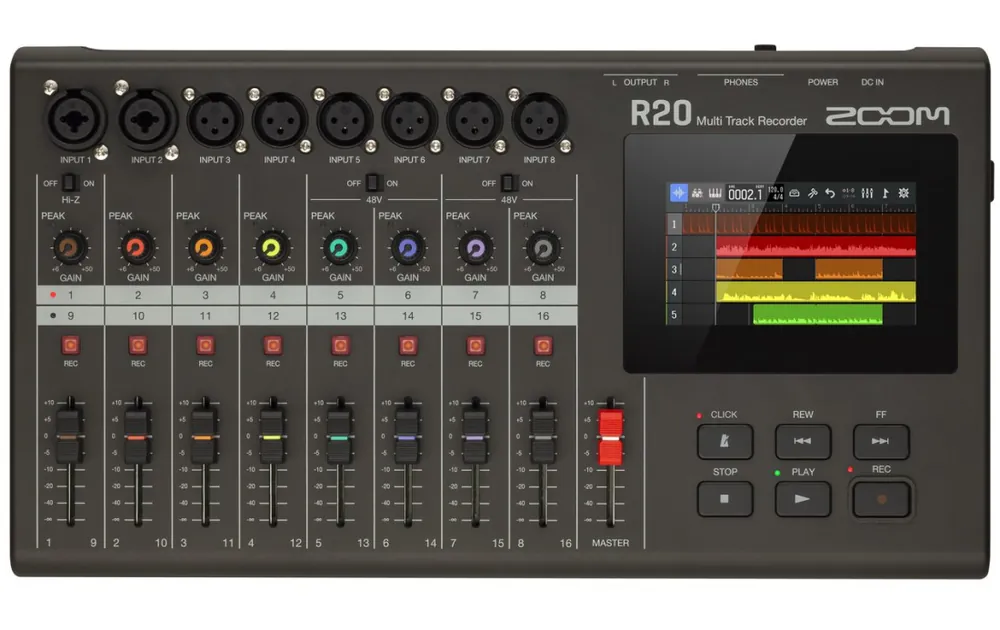

With a familiar touchscreen interface, the R20 makes it insanely simple to track, edit and mix your songs, letting you focus on the music. The R20 has the best preamps and noise floor of any multi track recorder Zoom has ever designed. With six XLR inputs, two combo inputs, and 16 tracks of recording, the R20 is perfect for singer-songwriters to full bands.
Features
4.3″ Full-colour LCD touchscreen display
Easy-to-use DAW-inspired interface
Record up to 16 tracks (8 simultaneously)
Eight XLR mic preamps, including two mic/line/instrument combo jacks
Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
Onboard editing and built-in effects
Pre-loaded drum loops
Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
New locking-type AC Adapter (ZAD-1220)
Up to 24-bit /44.1kHz audio in BWF-compliant WAV
Compatible with Guitar Lab software for Mac/Windows PC
Specifications
Inputs: Mic/line (Mono) X8
Outputs: Master out X1
Maximum simultaneous recording tracks: 8
Maximum simultaneous playback tracks: 16
Maximum number of simultaneous effects: 3 effects
Patch memories: 50
Tuner: Chromatic/guitar/bass/open A/open D/open E/open G/DADGAD
Remote: Dedicated wireless adapter (Zoom BTA-1)
Power: Ac adapter (Zoom Zad-1220): 12 V/2.0 A
Power consumption: 11 W maximum
External dimensions: 378 mm (W) x 206 mm (D) x 58 mm (H)
Weight (unit only): 1.33 Kg
