Description

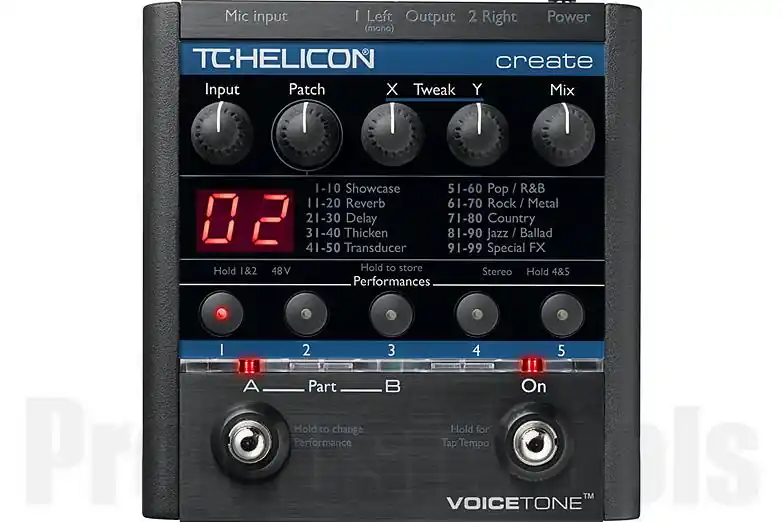

3TC Helicon VoiceTone Create. Hit Producer-in-a-pedal. Now you can get those ‘ear candy’ vocal effects that producers call on every day to create hit tracks. Used by artists such as Tpain and Kanye West and has the rich, front-of-house quality reverb from its famous big brother, VoiceLive 2

Specifications

Analog Inputs

• Connectors: Balanced XLR
• Input Impedance: 1 kOhm
• Mic Input Sensitivity @ 0 dBFS: -44 dBu to +2 dBu
• Mic Input Sensitivity @ 12 dB headroom: -56 dBu to -10 dBu
• EIN: -128 dBu @ max. mic amp gain, Rg = 150 Ohm

Analog Outputs

• Connectors: Balanced XLR
• Output Impedance: 40 Ohm
• Output Level @ 0dBFS: +2dBu

Input to Output Analog Audio Performance

• Dynamic Range, Mic. @ Min gain:>108 dB, 20 Hz – 20 kHz (A-weighted)
• Dynamic Range, Mic. @ -18dBu sensitivity:> 104dB, 20hz20kHz (A-weighted)
• THD+ Noise, Mic. @ Min gain: <-90dB
• Frequency Response, max gain: -1.5 dB @ 40 Hz, +0/-0.3 dB (200 Hz to 20 kHz)

Conversion Characteristics

• Sample Rate: 48 kHz
• Converter: AKM AK4620B
• A to D / D to A Conversion: 24 bit, 128x oversampling bitstream
• A to D Delay: 0.65 ms
• D to A Delay: 0.63 ms
• EMC
• Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B

Environment

• Operating Temperature: 32 F to 122 F (0 C to 50 C)
• Storage Temperature: -22 F to 167 F (-30 C to 70 C)
• Humidity: Max. 90% non-condensing

Safety

• Certified to: IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093

Supplementary

• Dimensions: 130mm x 132mm x 41mm (5″ x 5.25″ x 1.5″)
• Weight: 1.5 lb. (0.72 kg)
