Description

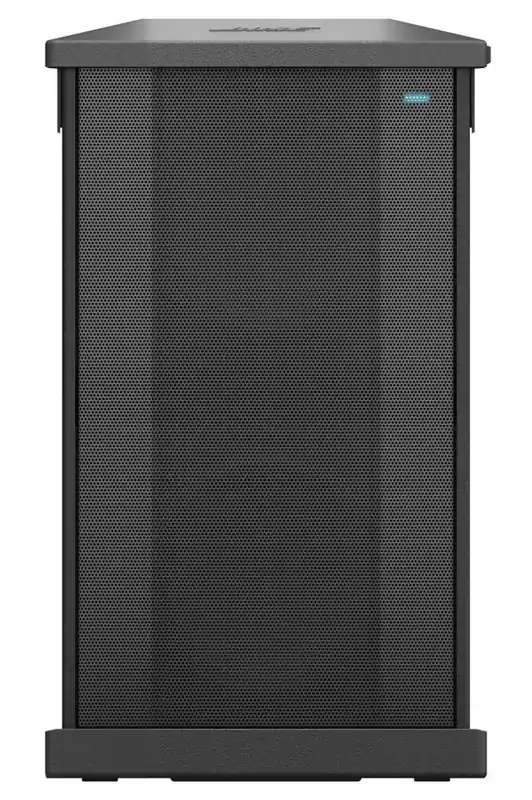

With 1,000 watts of power, the Bose F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the loudspeaker is integrated right into the body of the subwoofer, making setup fast and easy. The stand even includes cable channels to neatly hide the wires, giving your system a clean, professional look. And now getting your unit to the venue is easier, too. The F1 Subwoofer features strategically placed handles for easy transport.
Features:
Two high-excursion drivers, each measuring 10 inches, are built into the compact enclosure
Polarity switch to adjust polarity of subwoofer. Reversing polarity allows for easy correction of low-frequency overlap between the main loudspeaker and subwoofer
Line output EQ sets the F1 Subwoofer’s output to a high-pass filter or full range, which allows for easy crossover selection when used with a main loudspeaker
F1 Model 812 extension bracket is a unique bracket integrated into the subwoofer. This bracket can be raised and lowered by the end user, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer. The bracket eliminates the need for a conventional pole mount or tripod stand
Specifications:
Frequency Response (-3 dB): 40 Hz – 250 Hz
Frequency Range (-10 dB): 38 Hz – 250 Hz
Maximum SPL @ 1 m: 130 dB SPL (peak 6 dB CF)
Rated Power: 1,000 W (500+500)
Enclosure: Wood cabinet with high impact composite end caps
Dimensions, F1 Subwoofer: 27″ H x 16.1″ W x 17.6″ D (688 x 410.16 x 448.5mm)
Dimensions, F1 system stack: 73.5″ H x 16.1″ W x 17.6″ D (1868 x 410.16 x 448.5mm)
Net Weight: F1 Subwoofer: 55 lbs (24.9 kg)
F1 system stack: 99.5 lbs (45.7 kg)
Includes:
1 F1 Subwoofer
1 F1 Subwoofer stand
1 IEC Line Cord
1 Owner’s Guide
