Description

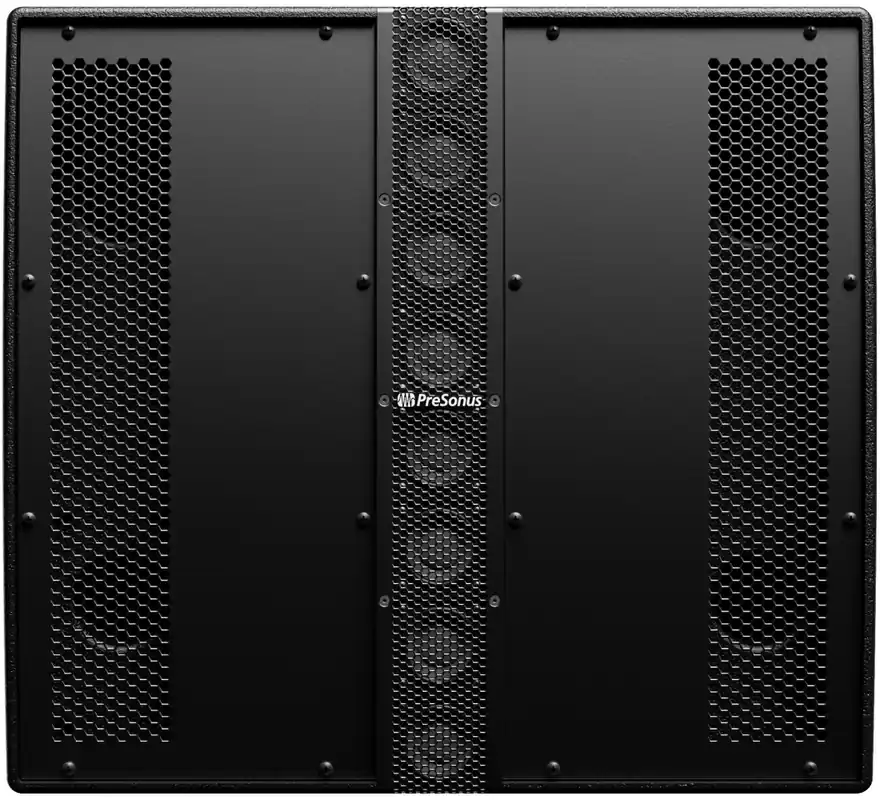

The CDL12P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. Based on the Constant-Directivity Two-Way Loudspeaker System design presented at the 143rd AES Convention in New York by Hugh Sarvis and Don Keele, the CDL12P radiates a highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis. The result is clear, articulate speech intelligibility and natural music reproduction.
Features
Continuous-directivity constant curve array with eight 2-inch cone drivers disperse sound an amazing 120° horizontally
15° vertical directivity can be extended from 30° up to 90° with additional arrayable CDL12Ps
12-inch, long-throw LF transducer with 2.5-inch voice coil
Low crossover point minimises comb filtering and enhances line array intelligibility
500 x 500 watts Class D power for high SPLs and lightning-fast transient response
Locking AC connector in and out
Balanced XLR input and output
90 High-pass filter
Array Mode (1-6 boxes)
Sub Mode (Off, CDL18s, ULT18, or AIR18s)
35 mm pole socket with 7.5° downward tilt for use with up to two CDL12P on a tripod or atop an 18-inch PreSonus® subwoofer (Note: a CDL18s must be used when two CDL12Ps are arrayed.)
Integrated flyware to create an array of up to six CDL12Ps
Signal, -3 dB, Limiter Protection, and Clip Monitoring
Easy-to-handle, compact form factor and 63 lb. weight
Rugged plastic enclosure
Tour-grade, 1.2 mm steel grille
CDL18s Subwoofer (Supports up to 2 CDL12Ps mounted atop)
ULT18 Subwoofer (Supports 1 CDL12P atop)
AIR18S Subwoofer (Support 1 CDL12P atop)
CDL12P Rigging System Components
Specifications
Acoustic Performance
Configuration: Active 2-way
Frequency Response (-3 dB): 48 Hz 18 kHz
Nominal Coverage (-6 dB): 120° (H) x 15° (V) per enclosure
Maximum Peak SPL: 130 dB
Crossover Frequency: 420 Hz
Transducer
LF Transducer: 12″ (2.5″ voice coil)
HF Transducer: 8 x 2″ (1 Voice Coil)
Amplifier
Type: Class D
Total Power Output: 2,000W Peak, 1,000W Program (500W RMS)
LF Power: 1,000W Peak, 500W Program (250W RMS)
HF Power: 1,000W Peak, 500W Program (250W RMS)
Cooling: Free air convection
Rated THD: 0.05% (20 Hz – 20 kHz)
Dynamic Range: 119 dB (A-weighted)
Bandwidth: 20 Hz – 20 kHz
Mains Connection: Locking AC In and Out
Connections and Controls
Input Channels: 1 Line
Input Connector Types: 1 XLR
Line Input Impedance: 40 k
Maximum Input: +4 dBu
Output Connector: Direct Line Out (XLR)
Indicators: Signal, -3 dB, Limiter, Clip
Enclosure
Material: 15mm polypropylene
Grille: Powder-coated steel
Dimensions (HxWxD): 18.5 x 20.5 x 18.25″ (470 x 521 x 464 mm)
Unit Weight: 63 lbs. (28.6 kg)
Safety
Amplifier Protection: Over-current, DC, over/under-voltage, over-temperature, high frequency
Transducer Protection: Limiter
Power
AC Power Input: 90-260V~, 50-60 Hz
AC Power Consumption (1/8 Power): 4.2 amps
Suspension Mounting
Rigging Points: Integrated rigging (10:1 load)
Mounting: Dual-position pole mount (0° and 7.5°) 35 mm
Optional Accessories
Rigging: CDL12P Rigging Grid, CDL Rigging Extension Bar, CDL12P Rigging Sling
Other: CDL12-Tote Tote Bag
