Description

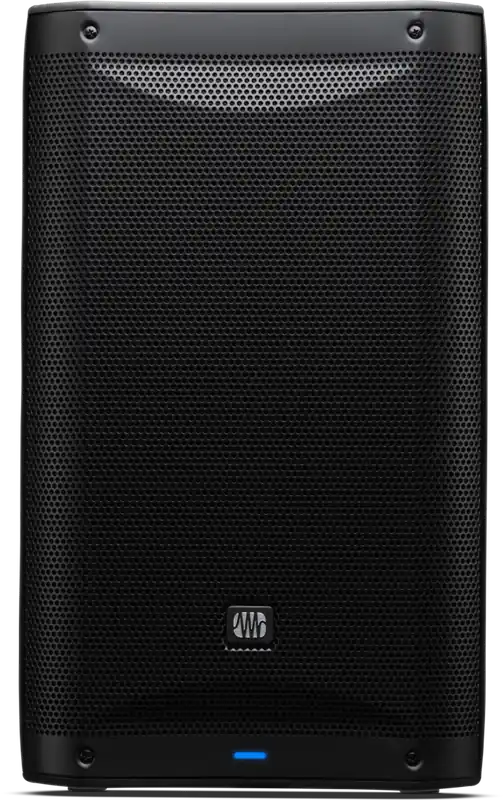

The PreSonus AIR XD 10 active loudspeaker combines big sound with a compact footprint, delivering an extended frequency range and up to 130 dB of crystal-clear output. Powered by over 1,500W of efficient Class D amplification, its 10-inch custom woofer and 1-inch HF compression driver offer deep, punchy lows and detailed highsall in a lightweight enclosure that fits easily in a cars backseat.
A full-color LCD screen gives you intuitive access to onboard tuning, EQ, and system settings. Select from multiple DSP presets optimized for front-of-house, stage monitoring, music playback, speech clarity, or enhanced low-end warmth. Treble and bass controls offer 10 dB adjustment, and location presets ensure optimal performance whether the speaker is flown, bracket-mounted, or on a stand.
With two mic/line combo inputs, an aux input, and a mix output, the AIR XD 10 supports a wide range of sound sources. Built-in Bluetooth with TWS Bridge Mode allows wireless stereo pairing with a second AIR XD 10ideal for mobile DJs, weddings, corporate events, or any portable setup.
The versatile cabinet design includes non-skid rubber feet for front-of-house or wedge monitor use, M10 fly points, and a dual-position pole mount for level or 7.5° downward tilt. It can also be tripod-mounted or paired with AIR-series subwoofers using an optional pole mount.
Whether for mobile gigs or fixed installations, the AIR XD 10 delivers professional-grade sound, rugged flexibility, and smart connectivity in a compact, road-ready package.

Features

Custom 10-inch low-frequency driver with enlarged 2.36″ voice coil for extended low-end response down to 55 Hz
1-inch High-frequency compression driver with PEEK diaphragm for clear, detailed, and durable highs
1,500W Class D bi-amplification for clean, efficient power and up to 130 dB SPL
Onboard DSP with performance presets, 10 dB EQ, and tuning modes for speech, music, FOH, or monitor use
Full-color 2.6″ LCD for fast, intuitive metering and system control
Built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing
90° horizontal dispersion and 60° vertical dispersion
Frequency Response: 66 Hz to 20 kHz (-3 dB), 55 Hz to 20 kHz (-10 dB)
Integrated 3-channel mixer with combo mic/line and aux inputs for flexible connectivity
Rugged, portable enclosure with ergonomic handles and multiple mounting options: flown, pole-mounted, ground-stacked, or floor wedge

Specifications

Electronics
Inputs: Four – (2 x XLR/TRS Mic/Line Combo, 1 x 1/8″ TRS Stereo, Bluetooth Stereo)
Auxiliary Input: 1/8 in (3.5 mm) Stereo
Line Out: One – 1 x XLR Mix Out
Channels: Three
Connectivity: Bluetooth
Voltage: 120V
Power Consumption: 3.3A (230V-50 Hz), 6.6A (120V)
Bluetooth: Bluetooth® V5.0
Performance
Peak SPL: 130 dB
Total Power Output: 1500 Watts
Inputs
Line Input Connection Type: XLR/TRS Mic/Line Combo
Line Inputs Impedance: 30K ohm
Line Inputs Maximum Level: +14dBu
Microphone Preamp Input Impedance: 30K ohm
Speakers
Crossover Frequency: 2.2 kHz
Speaker Type: Active 2-Way
Coverage Pattern: 90 degree (H) x 60 degree (V)
Hardware
Cabinet Material: H-PP Molded
Handle: 1 Top
Audio Controls: Gain, Volume, Hi/Lo EQ
Cooling: Passive radiator
Grille Material: 1.2 mm Steel
Pole Socket: Dual Position (0°, 7.5°)
