Description

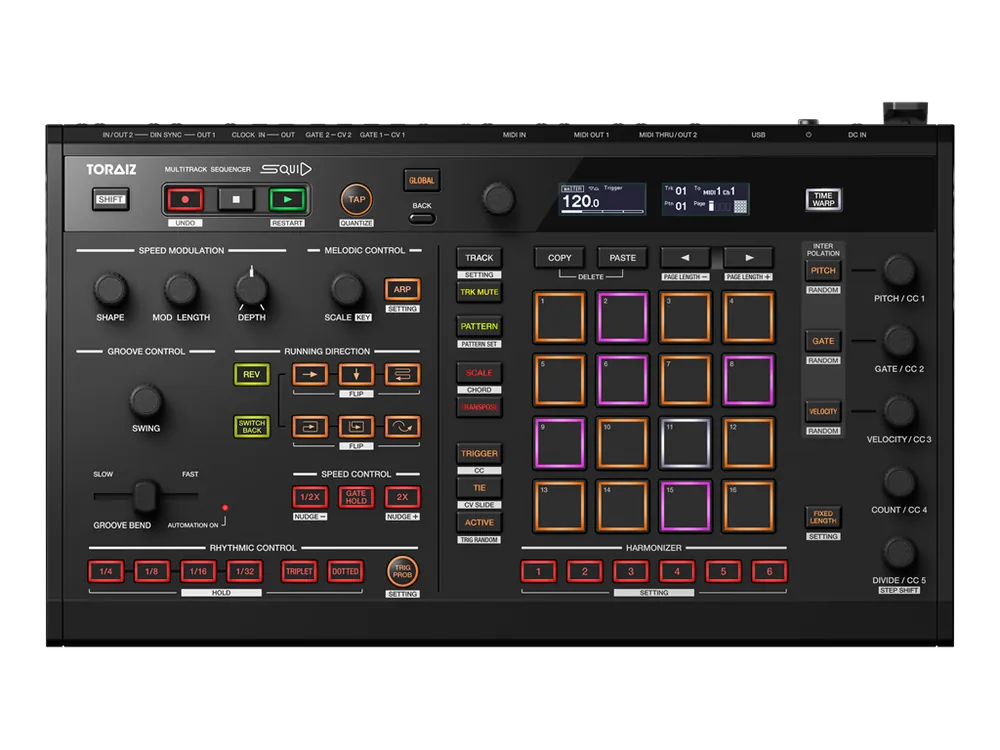

The Pioneer DJ Toraiz SQUID (SeQUencer Inspirational Device) is a multitrack sequencer that can create new phrases one after another by quickly programming and dynamically arranging sequence patterns. Serving as the heartbeat of your studio and live setup, the SQUID is optimized for effortless creation of musical phrases on-the-fly. Connect, sync and simultaneously control up to 16 instruments via its multiple input/outputs. The terminals are compatible with various equipment, from your DAW and hardware instruments to modular synths, vintage synthesizers and drum machines.
Perfect for on-the-fly music production, the layout and controls are effortless to navigate so your ideas will come to life the moment inspiration strikes. This production tool enables you to randomize sounds, sequences, and drums – all in key. Access endless polyrhythmic-looping options and instantly change the playback direction and speeds. With the world-first Groove Bend feature, you’ll really feel the groove as you generate original rhythms in real time. And by controlling everything in one place, you can focus on developing phrases.
Specifications
Dimensions (WxHxD): 374.8 x 223.9 x 72.1 mm / 14.8 x 8.8 x 2.8″
Weight: 1.9 kg / 4.2 lb
Included Accessories
AC adaptor
Power cord
Quick Start Guide
Sequencer
Maximum number of tracks: 16 tracks
Maximum number of patterns per track: 64 patterns
Maximum number of steps per track: 64 steps
Step resolution:
Quarter note to Thirty-second note
Maximum number of notes per step (polyphony): 8 notes
Maximum number of projects: 128
Terminals
MIDI
1 MIDI IN
1 MIDI OUT
1 MIDI THRU / OUT
USB
1 USB B port
CV / GATE
2 CV OUT (V/Oct, Hz/V)
CV output range: 1V, 2V, 5V, 10V, 5V (V/Oct) / 8V (Hz/V
2 GATE OUT (V-Trigger, S-Trigger)
GATE output range: 5V, 10V (V-Trigger)
CLOCK
1 CLOCK IN (Step, 1, 2, 4, 24, 48ppqn, Gate)
1 CLOCK OUT (1, 2, 4, 24, 48ppqn)
DIN SYNC
1 DIN OUT (24, 48ppqn)
1 DIN SYNC IN / OUT (24, 48ppqn)
