Description

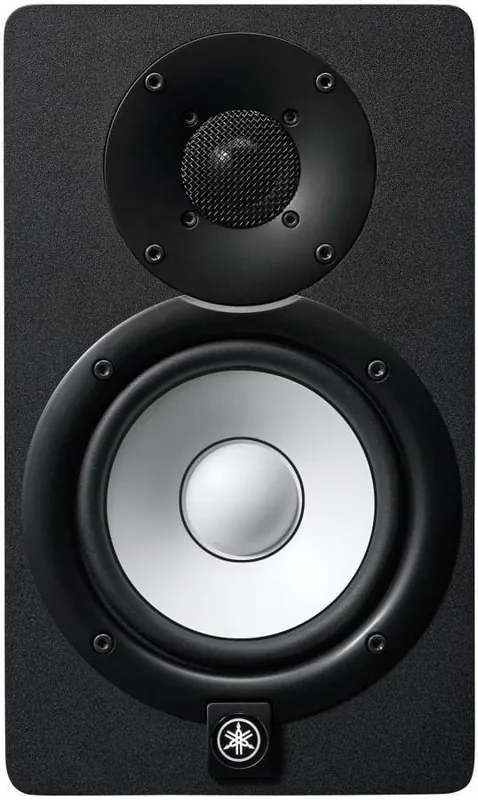

Ever since the 1970’s the iconic white woofer and signature sound of Yamaha’s nearfield reference monitors have become a genuine industry standard for a reason – their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process. By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha’s speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5″ model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments
KEY FEATURES
Newly developed transducers that achieve astonishingly smooth response over a wide range of bandwidth
Newly designed, highly-efficient 1″ dome tweeter that extends the usable frequency range considerably and delivers superb high-resolution sound
Newly designed, ultra-responsive woofers that utilize large, carefully selected magnets, HS Series monitors product low distortion sound with a well-defined bottom end at any output level
Low resonance enclosure design designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to its extreme limit
Cutting edge noise reduction technology resulting in a reduction of audible noise up to 6dB
SPECIFICATIONS
Speaker type: 2-way bi-amp powered studio monitor
Frequency Range (-10dB): 54Hz – 30kHz
Components LF: 5″ cone. HF: 1″ dome
Crossover: 2kHz
Output power: 70W (LF:45W, HF:25W)
I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
Power consumption: 45W
Shape: Bass-reflex type
Cabinet material: MDF
Dimensions (W, H, D): 170mm (6.7″), 285mm (11.2″), 222mm (8.7″)
Weight: 5.3kg (11.7 lbs.)
LEVEL control: (+4dB/center click)
EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
*Monitors Sold Separately*
