Description

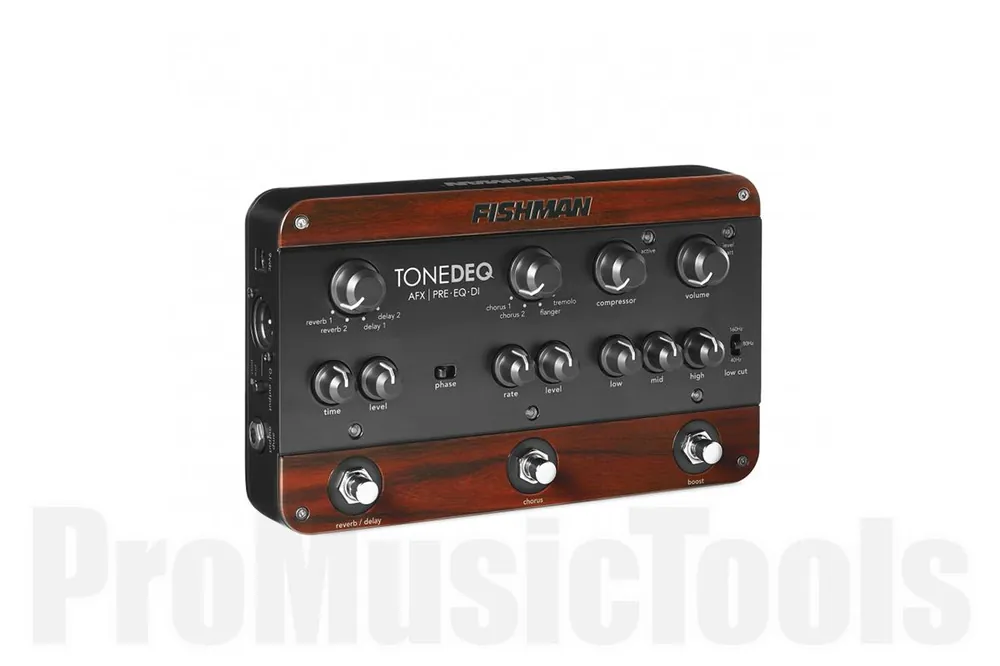

Fishman Tone DEQ AFX
The ToneDEQ Preamp EQ is a complete performance solution for the acoustic musician. With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced D.I.its got everything you need in one box.
Pure Analog Circuitry
Its analog signal path goes from end to endfrom preamp to outputto give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they dont affect the purity of your acoustic instrument.
Fully Balanced Stage D.I.
Flexible outputs include a 1/4 amplifier output and XLR D.I. output for the lowest noise possible. Plus the D.I. features automatic ground-lifting and selectable pre/post EQ settings.
Discrete Class-A Preamp
With Fishman, you get quality discrete class-A signal conditioning created by the leader in instrument preamp design. The high-impedance input is a must when using a passive instrument pickup.
Advanced 4-Band EQ
Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low-cut filter controls sub-bass effects produced by some passive pickups.
- Input: 10M Ohm, discrete class-A JFET design
- Audio: All-analog signal path with parallel digital effects
- Tone control: 4-band EQ with Bass, Middle, Treble, and selectable Low Cut
- Dual effects: Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo
- Dynamics: Soft-knee Compressor, Boost footswitch (up to 9dB)
- Feedback control: Selectable Phase invert
- Audio I/O: 1/4 mono instrument input, 1/4 amplifier output, balanced XLR D.I. output with pre/post routing
- Dimensions: 5.36 L x 9.5 W x 2.2 H (136 mm) (241 mm) (56 mm)
- Weight 2.5 lbs (1.1 kg)
- Battery life: 12 hours
