Description

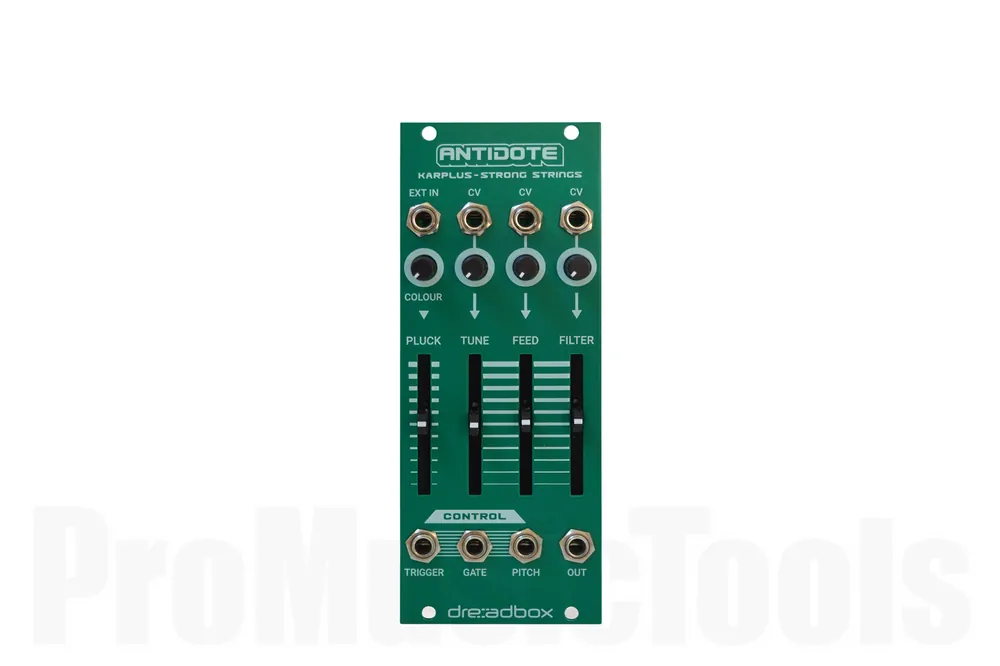

Dreadbox Antidote Karplus – Strong Strings

Eurorack modul

• Full Karplus-Strong Synthesis Voice
• Analog circuit based on a 512stages BBD chip
• On board Noise Generator with a variable decay (pluck)
• Two Analog Low Pass Filters (one in the input and one in the output)
• Output Filter can be used as a Low Pass Gate
• Precision tracking over 5 octaves (from C0 up to B4)
• Can process external audio signals so that can be used as:
  • Resonator
  • Flanger (requires external LFO)
  • Chorus (requires external LFO)
• Frequency/delay time range:
  • C0 @16,35hZ (61ms) up to
  • B4 @493,9hZ (2,1ms)
• BBD quirks:
  • C0 to F#0 will produce a hight pitched noise
  • Depending on the external input and the LFO source, clicks and peaks might be audible
• Current consumption: 92mA@+12v , 43mA@ -12v
• 35mm depth
• 10HP
