Description

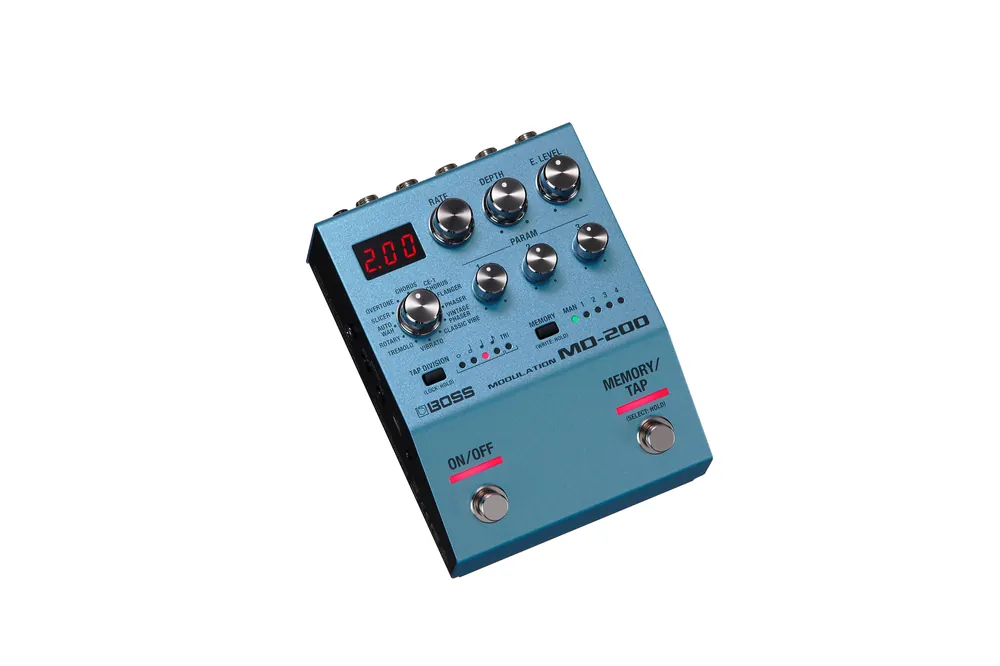

BOSS MD-200: MODULATION

– Sampling Frequency
96 kHz

– AD/DA Conversion
32 bits

– Processing
32-bit floating point

– Modes
12 modes
CHORUS, CE-1 CHORUS, FLANGER, PHASER, VINTAGE PHASER, CLASSIC VIBE, VIBRATO, TREMOLO, ROTARY, AUTO WAH, SLICER, OVERTONE

– Memory
4 Manual

– Nominal Input Level
INPUT A/MONO, B: -10 dBu

– Maximum Input Level
INPUT A/MONO, B: dBu

– Input Impedance
INPUT A/MONO, B: 2 M ohm

– Nominal Output Level
OUTPUT A/MONO, B: -10 dBu

– Maximum Output Level
OUTPUT A/MONO, B: dBu

– Output Impedance
OUTPUT A/MONO, B: 1 k ohms

– Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater

– Bypass
Buffered bypass

– Controls
ON/OFF switch, MEMORY/TAP switch
MODE knob, RATE knob, DEPTH knob, E. LEVEL knob, PARAM 1 knob, PARAM 2 knob, PARAM 3 knob
TAP DIVISION button, MEMORY button

– Display
7 segments, 3 characters (LED)

– Indicator
TAP DIVISION indicator, MEMORY (MAN, 1–4) indicators

– Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

– Power Supply
Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)

– Current Draw
225 mA

– Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.

– Dimensions
101 (W) x 138 (D) x 63 (H) mm / 4 (W) x 5-7/16 (D) x 2-1/2 (H) inches
101 (W) x 138 (D) x 65 (H) mm / 4 (W) x 5-7/16 (D) x 2-9/16 (H) inches (including rubber foot)

– Weight
610 g / 1 lb 6 oz
680 g / 1 lb 8 oz (including batteries)

– Accessories
Owner’s Manual
Leaflet USING THE UNIT SAFELY
Alkaline battery (AA, LR6) x 3
Rubber foot x 4

– Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35

* 0 dBu = 0.775 Vrms
