Description

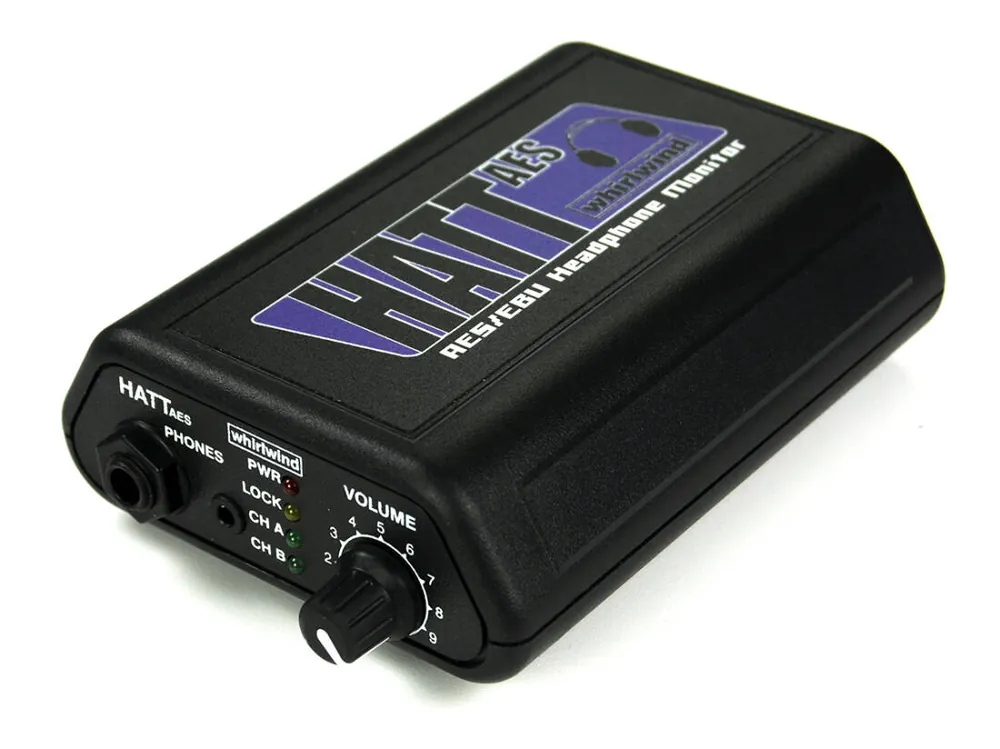

The Whirlwind HATT-AES is an active headphone amplifier that converts a digital AES3 stream into a high fidelity, low distortion stereo headphone signal optimized for modern 32 Ohm headphones. Sample rates from 32 kHz to 192 KHz are recognized by the HATT-AES D/A converters. Features include an analog 3.5mm TRS stereo input jack, analog signal present LEDs, and a buffered AES loop-thru output. The headphone output can also be used as an unbalanced stereo line driver.
The HATT-AES is powered by an included model #PS6 « wall wart » supply. Both 1/4″ TRS and 3.5mm TRS headphone jacks are provided and the volume control adjusts the listening level. The HATT-AES is housed in an attractive, durable ABS box for placement anywhere a high quality headphone driver is required.

Specifications

General
Number of Headphone Channels: Single Channel
Headphone Impedance: 32 Ohms recommended
Connectivity
Analog Audio I/O:
– 1x 1/8″ / 3.5 mm TRS Stereo Input
– 1x 1/4″ TRS Headphone Output
– 1x 1/8″ / 3.5 mm TRS Headphone Output
Digital Audio I/O:
– 1x AES3 Input
– 1x AES3 Thru
Performance
Frequency Response
+/- .8 dB 20 Hz to 20 kHz (30 Ohm load)
+/- .2 dB 20 Hz to 16 kHz (10 k load)
THD+N:
< .05% (20 Hz to 20 kHz, 30 Ohm load)
< .004% (20 Hz to 20 kHz, 10 k load)
Input Impedance
100 k AES
10 k analog
Total Gain: 20 dB
Maximum Input level
+0 dBfs (5 Vpp) AES
+3 dBV analog
Maximum output level: +4 dBV
Noise at unity gain: < -98 dBV
Power
Power requirements: 6 VDC @ 300mA (Power Adapter included)
Short circuit protection: Withstands shorted output at full level indefinitely
