Description

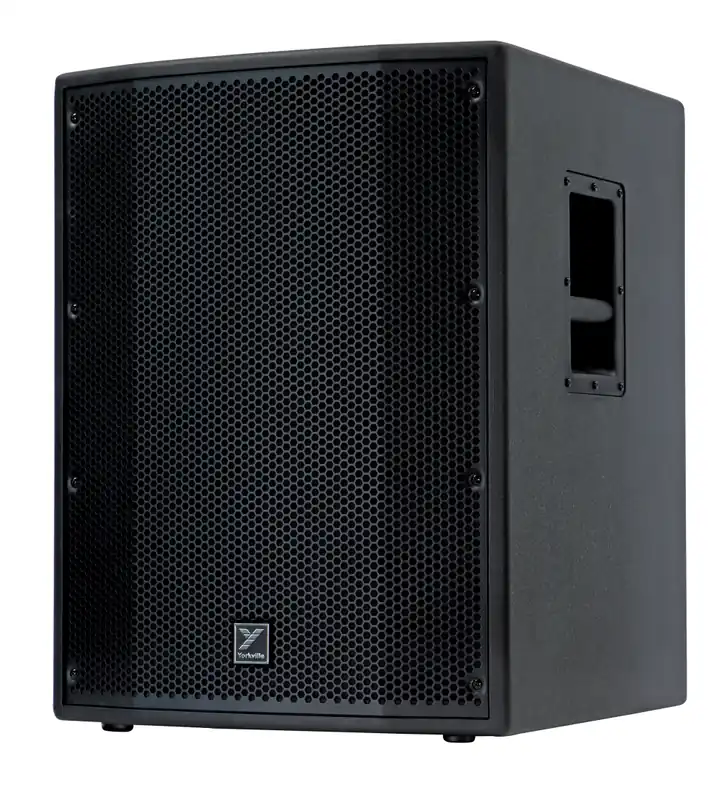

The YXL15SP offers our best ratio of power, performance and value for an active subwoofer enclosure. Providing 500 watts (1000 watts peak) with efficient speaker components, the YXL Series is extremely loud for its size. The YXL15SP can be easily used in any situation, to walls, floors or in arrays with multiple enclosures.

Features

1000 watts (peak) 500 watts (program)
Superior DSP processing with component protection
15-inch woofer with 3-inch voice coil
Recessed control panel
Master Level control with Activity indicator (cabinet level adjustment)
3 Performance modes, Punch, Smooth and Deep
2 x XLR/ 1/4-inch Combi Inputs
2 x XLR Link outputs
15mm plywood, latex paint
Tough, full length metal grille

Specifications

– System Type: Powered Subwoofer
– Power Rating: 1000 W Peak (500 W Program)
– Max SPL: 128 dB Peak
– Frequency Response (Hz +/- 3dB): 45 Hz – 100 Hz
– LF Driver(s): 15″ with 3″ Voice Coil
– LF Program Power(Watts): 1000 W Peak (500 W Program)
– LF Amplifier Type: Class D
– Cooling Scheme: Speed Controlled Fan
– Inputs: 2x Combi-Jack (XLR / 1/4″)
– Level Controls: Master
– EQ Controls: Punch, Smooth, and Deep Voicing Modes
– Limiter: Multiband Excursion, RMS, Rail
– Bar Handles: 2 (1x Each Side)
– Pole Mount Adapter (1 3/8): 1 (Top)
– Enclosure Materials: 12 mm Plywood
– Covering / Finish: Paint
– Dimensions (DWH): 19″ x 18″ x 24″ (48 x 46 x 61 cm)
– Weight: 62 lbs (28.1 kg)

EQ and Tone Settings

– Punch Mode will process the sound so it is perceived as a punchier sound, giving less power into deep bass and more into the upper bass.
– Smooth Mode will keep the original signal character with no preference for deep or upper bass.
– Deep mode will process the signal to provide a deeper sound, giving more power into deep bass while keeping the upper bass similar to the Smooth Mode.
