Description

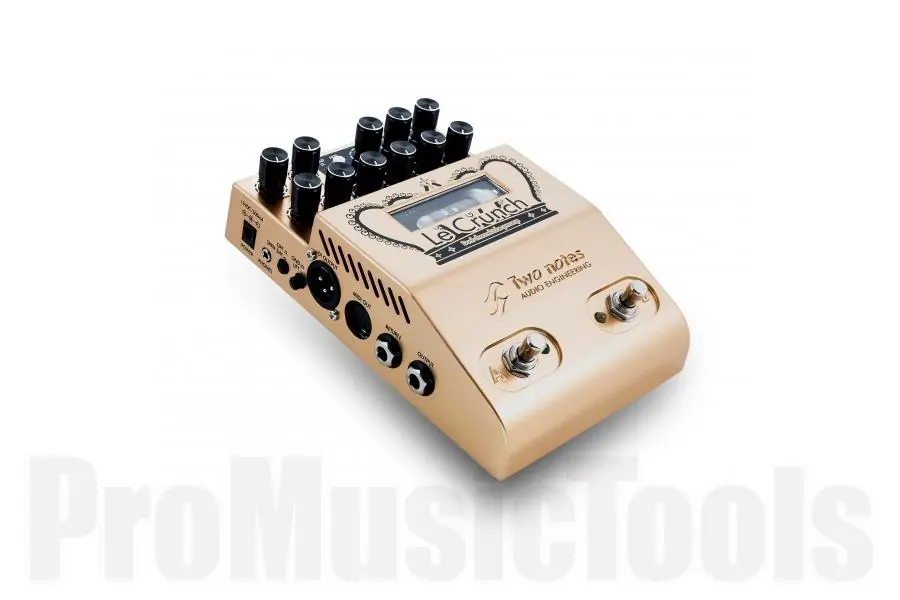

Le Crunch…

…combines the greatest tones of the classic British stack of amps that have defined RocknRoll since the late 60s. Channel As clean throaty voice is pure plexi heaven while Channel B screams move over, let there be rock! The Hot Fusion mode crosses over into the high gain territory where shredders and down tuned riffers write all the rules.
The Two Notes preamplifiers are a True High Voltage Design running internally at 200 volts to preserve the interaction between you and your guitar while working perfectly with your other effect pedals. Each of the four different versions deliver the unique tube warmth, dynamics, and the musical compression from the amps we know and love, now in a more convenient pedal package. And, of course, you can use them as an elaborate tube overdrive, in front of your favorite amplifier!

Two channels plus Fusion mode

The A and B channels are totally independent, each with their own voicing and eq section: Bass and Treble on A, Bass, Mid with Mid Sweep and Treble for B. On Channel A you will find a lower gain tube stage with a pre-gain EQ using a more vintage design approach, while Channel B offers more gain and a very powerful post-EQ (with mid sweep). The exclusive Fusion modes open new horizons.

Cold Fusion:

In Cold Fusion, the two channels are in parallel, meaning you can blend the cleaner sound from A and your more distorted sound in B to gain clarity and articulation.

Hot Fusion:

In Hot Fusion, A and B are cascaded, meaning A can be used as a boost for B with both A and B EQs available to shape the result.

Specifications

Tube:

• Ruby 12AX7AC5 HG

Tone control:

• A channel: Passive Bass/Treble tonestack
• B channel: Passive Bass/Treble tonestackActive Mid/Sweep controlGain: -18 to +6 dBFreq: 300Hz à 1.5kHz

Input / Output:

• Input: Jack 6.35 mm unbalanced (TS, Tip/Sleeve)Impedance: 1 MOhms
• Return: Jack 6.35mm unbalanced (TS)Max input level: 17 dBuImpedance: 2,2 MOhmsUnbuffered, directly connected to Output when active
• Output: Jack 6.35 mm unbalanced (TS)Max output level: 11 dBuImpedance: 300 Ohms
• Thru: Jack 6.35 mm unbalanced (TS)Unbuffered, directly connected to Inpu
• Send: Jack 6.35 mm unbalanced (TS)Max output level: 11 dBuImpedance: 300 Ohms
• DI Output: XLR, balancedImpedance : 600 OhmsMax output level: 10 dBu
• Phones: Jack 3.5 mm stereo (TRS, Tip/Ring/Sleeve)

Power:

• Mains power adaptor DC Jack 2.1mm, negative center
• Input voltage: 12V DC
• Power consumption: approx. 6W
• Current draw: 500mA

Dimensions & weight:

• Width x depth x height: 124 x 189 x 50 (mm)4.88 x 7.44 x 1.97 (in)
• Weight: 750g1.65 lb
